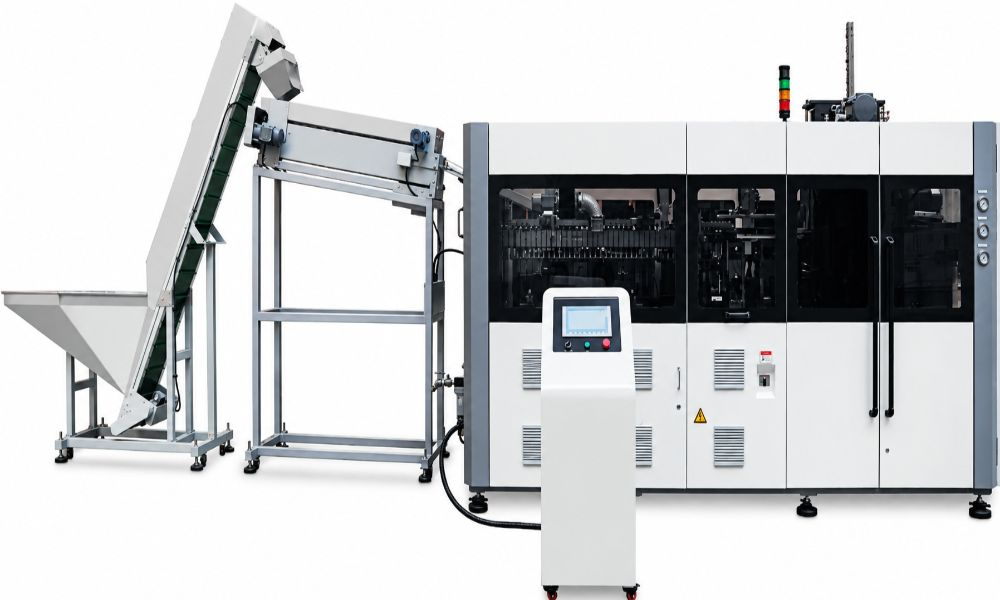

The 7 KVT Automatic PET Blowing Machine from Aim Technologies is built for bottling lines that need serious volume. It turns PET preforms into finished bottles at up to 14,000 bottles per hour (BPH), which makes it the highest-output model in our Automatic PET Blowing Machine range.
It handles bottles up to 1 litre, 300 mm in height and 80 mm in diameter, so it fits packaged drinking water, carbonated soft drinks, juices and similar beverages. Six servo motors drive the machine, and the controls are kept simple so operators can pick them up without a long learning curve.
We manufacture the machine in Surat, Gujarat. We also supply water bottling machines and complete mineral water bottling plants, so you can plan the blowing machine together with the rest of your line.
| Parameter | 7 KVT |
|---|---|
| Production Output | 14000 BPH |
| Maximum Volume | 1000 ML |
| Maximum Height | 300 MM |
| Maximum Diameter | 80 MM |
| Servo Motor (No.) | 6 |
| Heating Power | 96 KW |
| Total Power Consumption | 120 KW |
| Machine Dimension (L x W x H) | 5800 x 1800 x 2300 MM |
| Machine Weight | 5000 KG |
This model is meant for plants where hourly volume is the main concern. Typical uses include:
The machine measures 5800 x 1800 x 2300 mm and weighs about 5,000 kg, with a total power consumption of 120 KW. Before ordering, check your floor space, floor strength, ceiling height and electrical supply. Send us your plant layout and we will help you place the machine correctly alongside your filling and packing equipment.
Aim Technologies is a manufacturer based in Kamrej, Surat, Gujarat. Because we build PET blowing machines, water bottling machines and mineral water plants ourselves, you deal with one team for the machine, the line planning and the questions that come up after installation. Browse our full PET blowing machine range or talk to us about blow moulds for your bottle designs.
The 7 KVT automatic PET blowing machine produces up to 14,000 bottles per hour (BPH) for bottles up to 1000 ml.
It can blow PET bottles up to 1000 ml (1 litre) in volume, up to 300 mm in height and up to 80 mm in diameter.
The heating power is 96 KW and the total power consumption is 120 KW. Check that your plant's electrical supply can handle this load before installation.
The machine measures 5800 x 1800 x 2300 mm (L x W x H) and weighs about 5000 kg.
Click the Get Quote button on this page, call +91 90999 59013, or message us on WhatsApp. Tell us your bottle size and daily production target and our team will get back to you.
Yes. Along with PET blowing machines, Aim Technologies supplies water bottling machines and complete Turneky Mineral Water Plants from Surat, Gujarat.
