Aim Technologies is a Manufacturer and exporter of Water Filling Machine in Gujarat, India. Our 150 BPM Water Filling Machine is a mono block rotary system built for high-speed mineral water bottling. It rinses, fills and caps up to 150 bottles a minute, roughly 9,000 bottles per hour, and it handles bottle sizes from 200 ml to 2000 ml on the same machine.
If you are comparing options for a Packaged Drinking Water Plant, this 150 BPM Automatic Water Bottle Filling Machine is aimed at mid-size to large operations. Because rinsing, filling and capping happen in one compact unit, it works as a complete water bottle filling and capping machine, and the bottling step runs as a single flow instead of across separate machines.
| Plant Capacity | 150 BPM (approx. 9,000 bottles/hour) |
| Machine Type | Mono block rotary (rinsing, filling, capping) |
| R.O. Capacity | 10,000 LPH |
| Rinsing Head | 32 |
| Filling Head | 32 |
| Capping Head | 10 |
| Bottle Size | 200ml – 2000ml |
| Air Conveyor | 10 Ft. |
| Power Consumption | 13 KW |
| Material of Contact Parts | SS316L (rest SS304) |
The Automatic Water Bottle Filling Machine washes every bottle from the inside with 32 rinsing nozzles before it reaches the filling section. That section has a round tank with 32 filling nozzles, and the valves are designed to fill mineral water accurately in bottles from 200 ml to 2000 ml. For capping, the machine comes with 10 sets of special cappers and capping dies, matched to the cap size you specify.

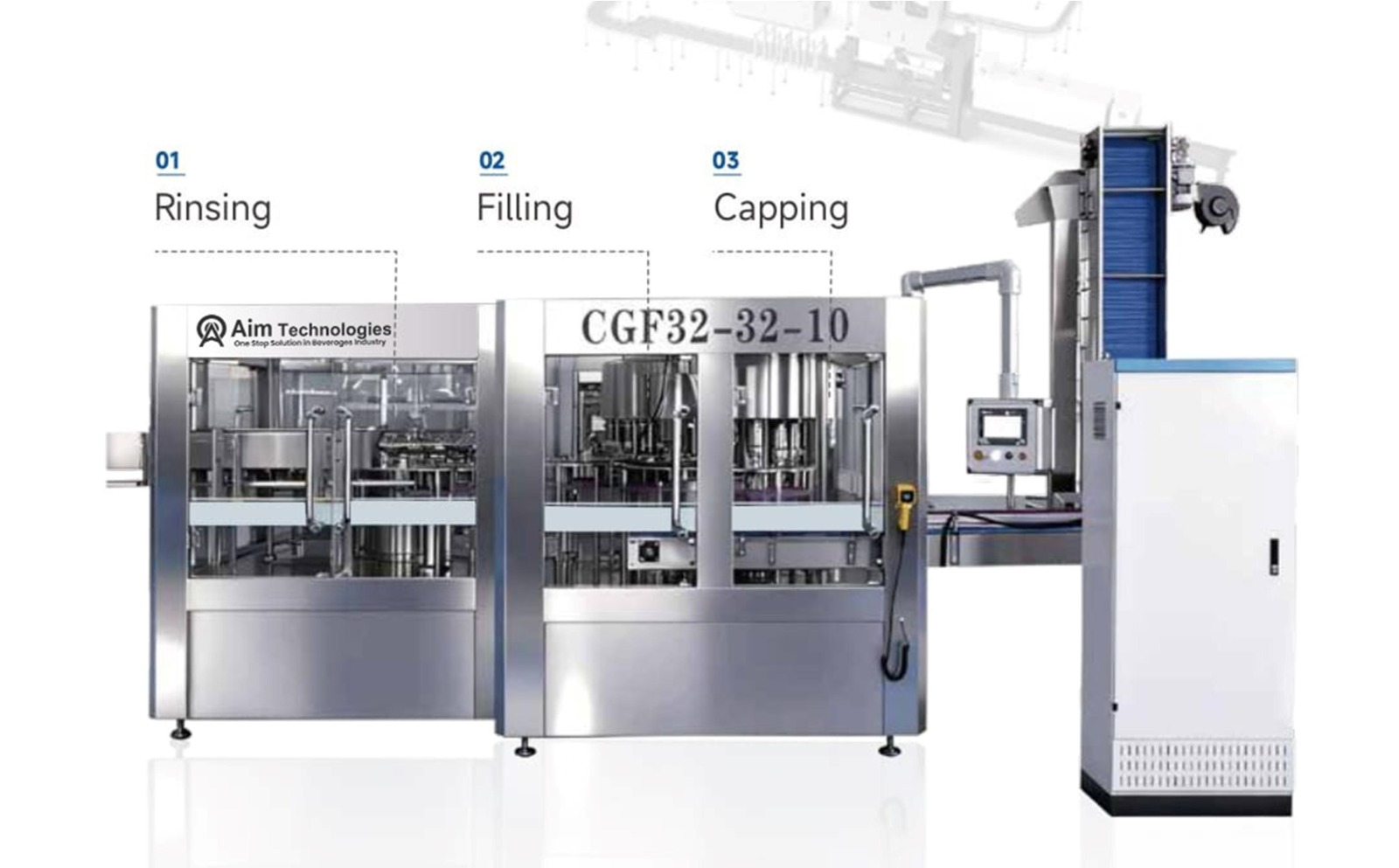

Bottles pass through three stages inside one rotary unit.
1. Rinsing: bottles enter the machine and are washed from the inside by 32 rinsing nozzles.
2. Filling: the rinsed bottles move to the round tank, where 32 filling valves fill each one with mineral water.
3. Capping: filled bottles reach the 10 capping heads, which tighten the caps using dies matched to your cap size. A separate cap elevator feeds the caps.
If you are choosing a Water bottling machine for a packaged drinking water plant, this 150 BPM Fully Automatic Water Bottle Filling Machine suits mid-size to large operations that need around 9,000 bottles per hour. If your output target is lower, our 90 BPM or 120 BPM machines may fit better. If you need more, the 200 BPM and 240 BPM models are built for higher volumes, while this one is the high-speed water filling machine for plants in the 9,000 bottles per hour range. Not sure which water filling machine capacity is right for your plant? Our team can help you choose.
What is a 150 BPM water filling machine?
It is a mono block rotary machine that rinses, fills and caps 150 bottles every
minute, which comes to about 9,000 bottles per hour. The Aim Technologies model
uses 32 rinsing heads, 32 filling heads and 10 capping heads.
How many bottles per hour can a 150 BPM water bottle filling machine fill?
At 150 bottles per minute, it can fill up to 9,000 bottles per hour. Actual
output depends on bottle size, water supply and line setup.
What bottle sizes can the 150 BPM water filling machine handle?
It works as a mineral water filling machine for bottles from 200 ml to 2000 ml,
all on the same line, with capping dies matched to the cap size you specify.
How do rinsing, filling and capping work in this water bottle filling machine?
Bottles are washed inside by 32 rinsing nozzles, filled by 32 filling valves and
then capped by 10 capping heads. All three steps happen inside one rotary
unit.
How much power does the 150 BPM water filling machine need?
The 150 BPM water filling machine has a power consumption of 13 KW.
What does mono block mean in a water filling machine?
Mono block means the rinsing, filling and capping stations are built into one
rotary machine, so bottles move through all three steps without being handed
over between separate machines.
What happens if a bottle is missing on the line?
The machine detects the gap. With no bottle, there is no rinsing, no filling and
no capping, so water is not wasted.
What material is used in the 150 BPM water filling machine?
Water-contact parts are made of SS316L stainless steel, and the rest of the
machine is SS304.
What is the 150 BPM water filling machine price?
The price depends on the configuration, bottle size range, level of automation
and overall project requirements, so a single fixed figure would not be
accurate. Share your requirement with Aim Technologies and we will send you a
quotation.
Customers choose our Water Bottle Filling Machines for excellent performance and minimum maintenance, which is why they stay in demand. As a Water Filling Machine Manufacturer in India and an exporter, we also help buyers match the right water bottle filling machine capacity to their plant.
Call or WhatsApp Aim Technologies to discuss your requirement and get the best price for the 150 BPM water filling machine.
