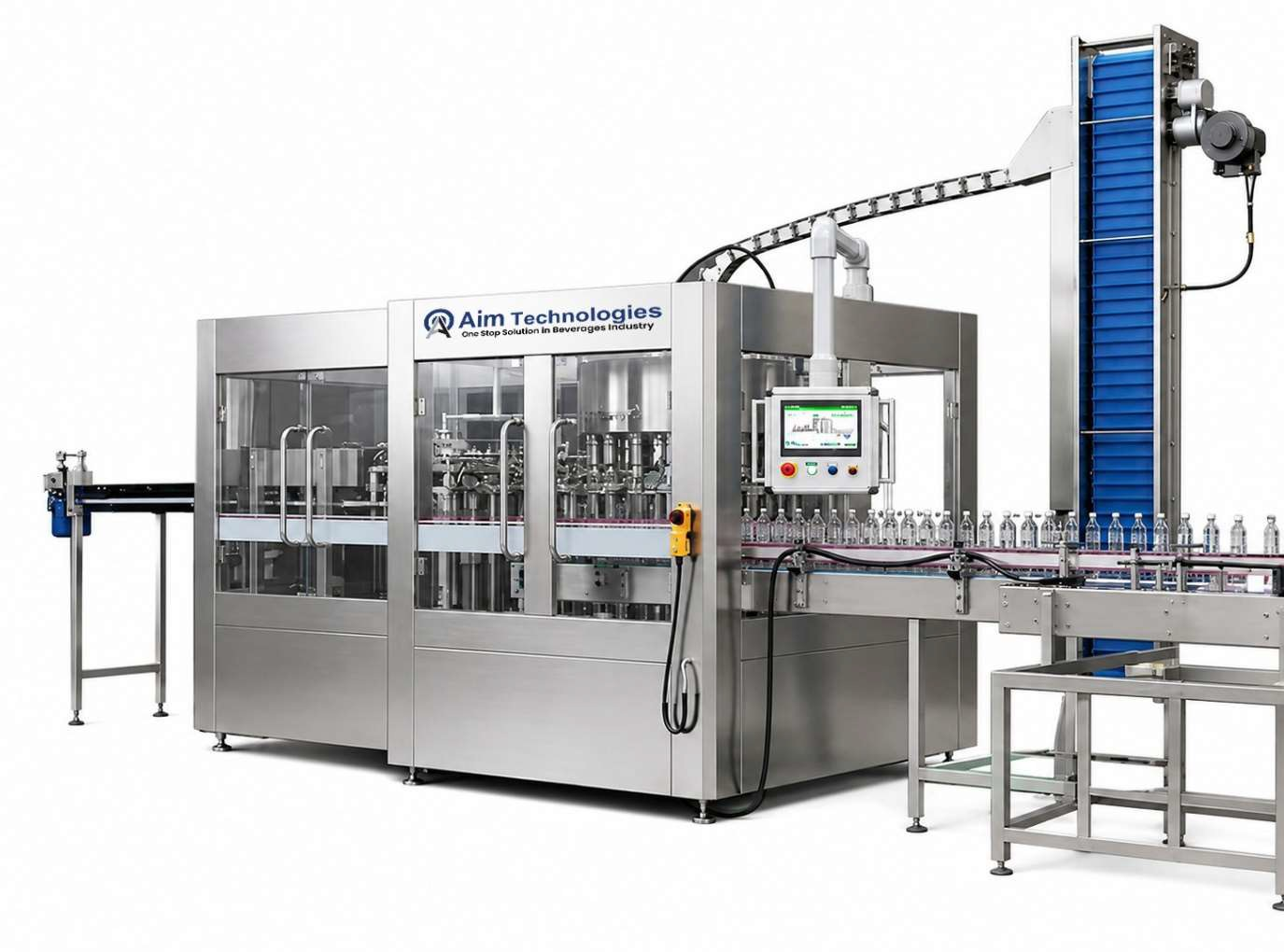

We at Aim Technologies Manufacture and export the 240 BPM Water Filling Machine in India. This is our highest-capacity Automatic Water Bottle Filling Machine , built for plants that need to run at full speed without slowing down for bottle size changes. It fills bottles from 200 ml to 2000 ml on the same line, so you do not need a separate machine for different pack sizes.
| Plant Capacity | 240 BPM (approx. 14,400 bottles/hour) |
| Machine Type | Mono block rotary (rinsing, filling, capping) |
| R.O. Capacity | 16,000 LPH |
| Rising Head | 50 |
| Filling Head | 50 |
| Capping Head | 15 |
| Bottle Size | 200ml – 2000ml |
| Air Conveyor | 15 Ft. |
| Power Consumption | 18 KW |
| Material of Contact Parts | SS316L (rest SS304) |
The 240 BPM Water Bottle Filling Machine runs on 50 rinsing nozzles that clean every bottle from the inside before it reaches the filling station. A round tank with 50 filling nozzles then fills each bottle with mineral water, and the filling valves hold their accuracy across the full 200 ml to 2000 ml range. Once filled, bottles pass through 15 capping heads fitted with dies sized to your cap, so the seal is tight and consistent on every bottle.
1. Rinsing: bottles enter the machine and are washed from the inside by 50 rinsing nozzles.
2. Filling: the rinsed bottles move into the round tank, where 50 filling valves fill each bottle with mineral water.
3. Capping: the filled bottles pass under 15 capping heads, which close the cap using dies matched to your cap size. A separate cap elevator keeps caps moving into position without delay.
The 240 BPM machine is meant for large packaged drinking water plants, contract packing units and export-focused setups that need close to 14,400 bottles an hour. It is our highest-capacity mono block model, so if your plant is running near this volume already, or you are planning to scale up production over the next few years, this machine gives you the headroom to grow into it. If your current requirement is lower, our 150 BPM or 200 BPM machines may be a better fit on cost and floor space.
Our Water Bottle Filling Machines have features such as excellent performance which requires minimum maintenance, making it highly in demand among our customers.
What is a 240 BPM Water filling machine?
A 240 BPM water filling machine is a mono block rotary machine that rinses,
fills and caps 240 bottles every minute, which works out to roughly 14,400
bottles per hour. The Aim Technologies model uses 50 rinsing heads, 50
filling heads and 15 capping heads.
How many bottles per hour can a 240 BPM machine fill?
At 240 bottles per minute, the machine can fill close to 14,400 bottles per
hour. Actual output depends on bottle size, water supply pressure and how the
line is set up.
What bottle sizes can the 240 BPM machine fill?
It can fill mineral water bottles from 200 ml to 2000 ml in the same machine,
with capping dies matched to the cap size you specify.
How much power does a 240 BPM Water filling machine need?
The 240 BPM water filling machine has a power consumption of 18 KW.
What does mono block mean in a Water filling machine?
Mono block means the rinsing, filling and capping stations are built into a
single rotary machine, so bottles move through all three steps without being
handed over between separate machines.
What happens if a bottle is missing on the line?
The machine detects the missing bottle through non-contact sensors. If there
is no bottle, there is no rinsing, no filling and no capping, so water is not
wasted.
Is the 240 BPM machine suitable for export or large-scale plants?
Yes. This is Aim Technologies' highest-capacity mono block filling machine,
built for large packaged drinking water plants, contract packing units and
export-oriented setups.
Our Water Bottle Filling Machines are known for consistent performance and low maintenance, which is why plants across Gujarat and abroad keep coming back to us for their next line upgrade. Aim Technologies is a Manufacturer and exporter based in Gujarat, India, and our team can walk you through which capacity actually fits your production target, instead of just selling you the biggest machine on the list.
