A line that fills and caps bottles faster than it can pack them isn't really running at full speed - it's just moving the bottleneck downstream. That's the problem an automatic shrink wrapping machine for bottles is built to solve. Instead of workers manually grouping, filming, and heat-sealing bottles by hand, the machine takes over the entire cycle: feeding film, forming bundles, sealing the ends, and shrinking the wrap tight around the product, all without a pause between batches. An Automatic Shrink Wrapping Machine for Bottles helps manufacturers increase packaging speed while ensuring secure, tamper-proof bundles for transportation and retail.
If you're evaluating a shrink wrapping machine for a water bottling line, a beverage plant, or a pharmaceutical or cosmetics packaging unit, this guide walks through exactly how these machines work, the features that separate a good machine from a mediocre one, the benefits you can expect on the shop floor, and the industries that rely on them daily. We'll also compare Aim Technologies' Semi-Automatic, 60 BPM, 90 BPM, 120 BPM, and 200 BPM Linear model side by side, so you can match capacity to your actual production needs.
An automatic shrink wrapping machine is a packaging system that wraps a group of bottles, cans, or containers in heat-shrinkable plastic film and then shrinks that film tightly around the products using controlled heat. The result is a single, secured multi-pack that's easier to handle, stack, and transport than loose individual units.

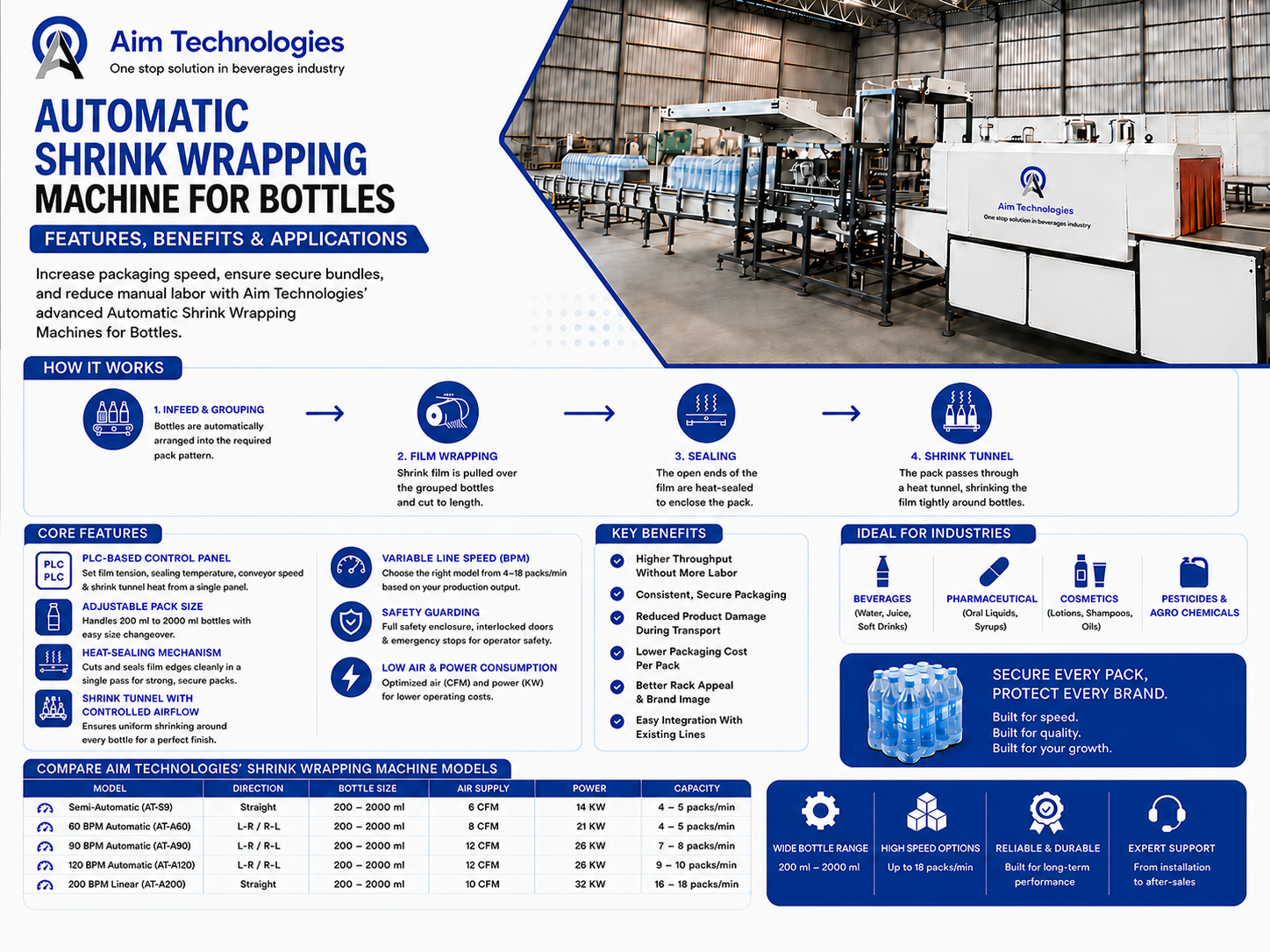

The process generally runs through four stages:
On a fully automatic line, all four stages happen continuously, with bottles entering on one side and finished shrink packs exiting on the other - no manual intervention required between cycles.
Not every shrink wrapper on the market is built the same way. The features below are what actually determine whether a machine holds up to daily production or becomes a maintenance headache within a year.
A programmable logic controller lets the operator set film tension, sealing temperature, conveyor speed, and shrink tunnel heat from a single panel. This removes guesswork and keeps every pack consistent, batch after batch, regardless of who's running the shift.
Most bottling operations don't run a single SKU forever. A machine that can handle a 200 ml bottle on Monday and a 2000 ml bottle on Thursday - without buying new tooling - saves both money and downtime. Aim Technologies' shrink wrappers are built to handle the 200 ml to 2000 ml range across all models.
The sealing bar needs to cut and seal the film edge cleanly in a single pass. A weak or uneven seal is the most common cause of loose packs reaching the warehouse, so this is one part of the machine worth inspecting closely before purchase.
The tunnel applies even, directional heat so the film shrinks uniformly around every bottle in the group - not just the ones at the front or edges. Poor airflow design leaves loose film on inner bottles, which defeats the purpose of wrapping in the first place.
Machine capacity is usually measured in Bottles Per Minute (BPM) or Packs Per Minute. Aim Technologies' range spans from semi-automatic units doing 4-5 packs/min to the 200 BPM Linear model wrapping 16-18 packs/min, so the right speed tier depends entirely on your filling line's output.
Moving conveyors and a heat tunnel both carry risk if left unguarded. Full enclosure panels, interlocked access doors, and an accessible emergency stop are non-negotiable on any production floor, especially where multiple shifts are operating the same machine.
Air supply requirements (measured in CFM) and power draw (in KW) directly affect your running cost. A machine that wraps fast but burns excessive compressed air or electricity will cost you more over a year than the slightly slower model next to it - so always check both figures, not just BPM.
Here's how the five models stack up on the specs that matter most when sizing a machine to your line:
| Model | Direction | Bottle Size | Air Supply | Power | Capacity |
|---|---|---|---|---|---|
| Semi-Automatic (AT-SS) | Straight | 200-2000 ml | 6 CFM | 14 KW | 4-5 packs/min |
| 60 BPM Automatic (AT-A60) | L-R / R-L | 200-2000 ml | 8 CFM | 21 KW | 4-5 packs/min |
| 90 BPM Automatic (AT-A90) | L-R / R-L | 200-2000 ml | 12 CFM | 26 KW | 7-8 packs/min |
| 120 BPM Automatic (AT-A120) | L-R / R-L | 200-2000 ml | 12 CFM | 26 KW | 9-10 packs/min |
| 200 BPM Linear (AT-A200) | Straight | 200-2000 ml | 10 CFM | 32 KW | 16-18 packs/min |
All five models accept the same 200 ml - 2000 ml bottle range and are rated for Beverages, Pharmaceutical, Cosmetics, and Pesticides applications, so the deciding factor usually comes down to your target output and floor space rather than compatibility.
Manual bundling typically caps out around 1-2 packs per minute per worker, and that pace drops further as fatigue sets in over a shift. A 120 BPM automatic shrink wrapping machine can sustain 9-10 packs per minute continuously, which is the kind of jump that actually changes your daily output numbers rather than nudging them.
Heat-shrink film conforms tightly around the bottle group, leaving no loose edges for a customer or retailer to peel back unnoticed. For pharmaceutical and beverage brands, this consistency also doubles as a basic tamper-evidence layer that manual wrapping can't reliably match.
Automated film handling reduces film wastage from inconsistent manual cutting, and fewer labor-hours per thousand units lowers your packaging cost per bottle over time - even after accounting for the machine's power and air consumption.
A properly shrink-wrapped bundle holds its shape under stacking, vibration, and the general handling that happens between your warehouse and a retail shelf. Loose, hand-wrapped packs are far more prone to shifting, tearing, or losing bottles mid-transit.
A tight, even shrink wrap shows off your label artwork clearly through the film, which matters more than most manufacturers initially assume - retail buyers and distributors often judge product quality by pack presentation before they ever open a unit.
Once a PLC-controlled machine is calibrated correctly, it runs the same way shift after shift. That predictability cuts down the unplanned stoppages that come from manual process variation, which is one of the most overlooked operating costs on a packaging line.
Aim Technologies' automatic shrink wrapping machines are built to serve a range of industries that each have slightly different packaging priorities:
This is usually the first real decision point for a new bottling unit, and it comes down to volume and budget more than anything else.
A semi-automatic shrink wrapping machine suits small and mid-sized operations or trading companies that don't need continuous high-speed output. It's easier to operate, requires a lower upfront investment, and still delivers a consistent, professional shrink-wrapped result - just at a lower throughput of 4-5 packs per minute.
A fully automatic machine, on the other hand, is built for continuous, high-volume lines where downtime directly costs money. These systems reduce hands-on labor to almost nothing once running, and the higher capacity models (90 BPM and above) are designed specifically for plants running multiple shifts without interruption.
Before buying an Automatic Shrink Wrapping Machine for Bottles, evaluate your production capacity, bottle size, and available floor space.
Even experienced production managers run into a few recurring problems when sizing or installing a shrink wrapping machine for the first time. Catching these early can save weeks of troubleshooting later.
A 200 BPM machine looks impressive on a spec sheet, but if your filler only produces 60 bottles a minute, the wrapper will spend most of its time waiting. That idle capacity is paid for either way, so it's worth sizing the wrapper to your actual upstream rate plus a reasonable growth margin - not to the fastest number available.
Linear machines need a straight conveyor run with enough clearance on both ends, while L-R/R-L direction machines can be positioned more flexibly around an existing line. Measuring your actual floor space before finalizing a model avoids a last-minute layout redesign once the machine arrives.
Shrink film is a recurring consumable, not a one-time purchase. Two machines with similar upfront prices can end up with very different running costs depending on how efficiently each one uses film per pack - so it's worth asking a manufacturer for their typical film consumption figures, not just the machine price.
Even a fully automatic machine still needs an operator who understands tunnel temperature settings, film tension adjustments, and basic troubleshooting. Plants that skip proper training tend to see more seal failures and film jams in the first few months, simply because settings were left at factory defaults that don't match their specific film or bottle shape.
A shrink wrapping machine is a mechanical and thermal system running continuously, so a basic maintenance routine goes a long way toward avoiding unplanned stoppages.
Following a basic routine like this is usually enough to keep a well-built machine running reliably for years, which is also why it's worth choosing a manufacturer who can supply genuine spare parts quickly rather than the cheapest machine on paper.
Aim Technologies is a Surat, Gujarat-based manufacturer and exporter of shrink wrapping and bottle packing machinery, serving the Beverage, Pharmaceutical, Cosmetics, and Pesticides industries with both semi-automatic and fully automatic systems. Every model in our shrink wrapping range - from the AT-SS Semi-Automatic to the AT-A200 Linear - is built to handle the 200 ml to 2000 ml bottle range with consistent sealing quality and accessible PLC controls.
Whether you're setting up your first packaging line or upgrading an existing one to keep pace with a faster filling machine, our team can help you match the right model to your actual production numbers - not just the biggest spec sheet.
A. A shrink wrapping machine handles the full cycle - grouping bottles, wrapping film, and sealing - before passing the sealed packs into a shrink tunnel, which is the heated chamber that actually shrinks the film tight. The "shrink wrapping machine" usually refers to the complete line, with the tunnel as one stage within it.
A. Aim Technologies' shrink wrapping machines, across all five models, are built to handle bottles ranging from 200 ml to 2000 ml, covering single-serve water bottles up to large family-pack containers without needing separate machines for each size.
A. It depends on the model. The Semi-Automatic and 60 BPM Shrink Wrapping Machine handle 4-5 packs per minute, the 90 BPM model handles 7-8 packs per minute, the 120 BPM model handles 9-10 packs per minute, and the 200 BPM Linear model handles 16-18 packs per minute.
A. Yes. A semi-automatic shrink wrapping machine is well-suited to small and mid-sized operations or trading companies that don't require continuous high-speed output. It's easier to operate, costs less upfront, and still produces a consistent, properly sealed shrink pack.
A. Most automatic shrink wrapping machines run heat-shrinkable polyolefin or PVC film. Polyolefin is more commonly used for food, beverage, and pharmaceutical packaging because of its clarity, durability, and food-grade safety profile.
A. It varies by model and speed. Aim Technologies' range spans from 14 KW power and 6 CFM air supply on the Semi-Automatic model up to 32 KW power and 10 CFM air supply on the 200 BPM Linear model. Always confirm these figures against your plant's existing electrical and compressed-air capacity before installation.
A. Yes. The same machine models are rated for Beverages, Pharmaceutical, Cosmetics, and Pesticides applications, since the core wrapping and sealing process doesn't change - only the bottle size and film choice may need adjusting for the specific product.
